Communication in Data Centers¶
To understand the challenges facing data center transport protocols, we first describe a common application structure, Partition/Aggregate, that motivates why latency is a critical metric in data centers. We measure the synchronized and bursty traffic patterns that result from these application structure, and identify three performance impairments these patterns cause.
Partition/Aggregate¶

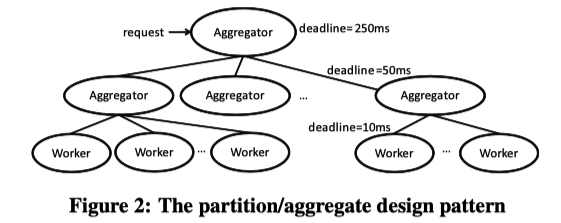

The Partition/Aggregate design pattern shown in Figure 2 is the foundation of many large scale web applications. Requests from higher layers of the application are broken into pieces and farmed out to workers in lower layers. The responses of these workers are aggregated to produce a result. Web search, social network content composition, and advertisement selection are all based around this application design pattern. For interactive, soft-real-time applications like these, latency is the key metric, with total permissible latency being determined by factors including customer impact studies [21]. After subtracting typical Internet and rendering delays, the “backend” part of the application is typically allocated between 230-300ms. This limit is called an all-up SLA.
Many applications have a multi-layer partition/aggregate pattern workflow, with lags at one layer delaying the initiation of others. Further, answering a request may require iteratively invoking the pattern, with an aggregator making serial requests to the workers below it to prepare a response (1 to 4 iterations are typical, though as many as 20 may occur). For example, in web search, a query might be sent to many aggregators and workers, each responsible for a different part of the index. Based on the replies, an aggregator might refine the query and send it out again to improve the relevance of the result. Lagging instances of partition/aggregate can thus add up to threaten the all-up SLAs for queries. Indeed, we found that latencies run close to SLA targets, as developers exploit all of the available time budget to compute the best result possible.
To prevent the all-up SLA from being violated, worker nodes are assigned tight deadlines, usually on the order of 10-100ms. When a node misses its deadline, the computation continues without that response, lowering the quality of the result. Further, high percentiles for worker latencies matter. For example, high latencies at the 99.9 th percentile mean lower quality results or long lags (or both) for at least 1 in 1000 responses, potentially impacting large numbers of users who then may not come back. Therefore, latencies are typically tracked to 99.9 th percentiles, and deadlines are associated with high percentiles. Figure 8 shows a screen shot from a production monitoring tool, tracking high percentiles.
With such tight deadlines, network delays within the data center play a significant role in application design. Many applications find it difficult to meet these deadlines using state-of-the-art TCP, so developers often resort to complex, ad-hoc solutions. For example, our application carefully controls the amount of data each worker sends and adds jitter. Facebook, reportedly, has gone to the extent of developing their own UDP-based congestion control [29].
Workload Characterization¶
We next measure the attributes of workloads in three production clusters related to web search and other services. The measurements serve to illuminate the nature of data center traffic, and they provide the basis for understanding why TCP behaves poorly and for the creation of benchmarks for evaluating DCTCP.
We instrumented a total of over 6000 servers in over 150 racks. The three clusters support soft real-time query traffic, integrated with urgent short message traffic that coordinates the activities in the cluster and continuous background traffic that ingests and organizes the massive data needed to sustain the quality of the query responses. We use these terms for ease of explanation and for analysis, the developers do not separate flows in simple sets of classes. The instrumentation passively collects socket level logs, selected packet-level logs, and app-level logs describing latencies – a total of about 150TB of compressed data over the course of a month.
Each rack in the clusters holds 44 servers. Each server connects to a Top of Rack switch (ToR) via 1Gbps Ethernet. The ToRs are shallow buffered, shared-memory switches; each with 4MB of buffer shared among 48 1Gbps ports and two 10Gbps ports.
Query Traffic. Query traffic in the clusters follows the Partition/Aggregate pattern. The query traffic consists of very short, latency-critical flows, with the following pattern. A high-level aggregator (HLA) partitions queries to a large number of mid-level aggregators (MLAs) that in turn partition each query over the 43 other servers in the same rack as the MLA. Servers act as both MLAs and workers, so each server will be acting as an aggregator for some queries at the same time it is acting as a worker for other queries. Figure 3(a) shows the CDF of time between arrivals of queries at mid-level aggregators. The size of the query flows is extremely regular, with queries from MLAs to workers being 1.6KB and responses from workers to MLAs being 1.6 to 2KB.

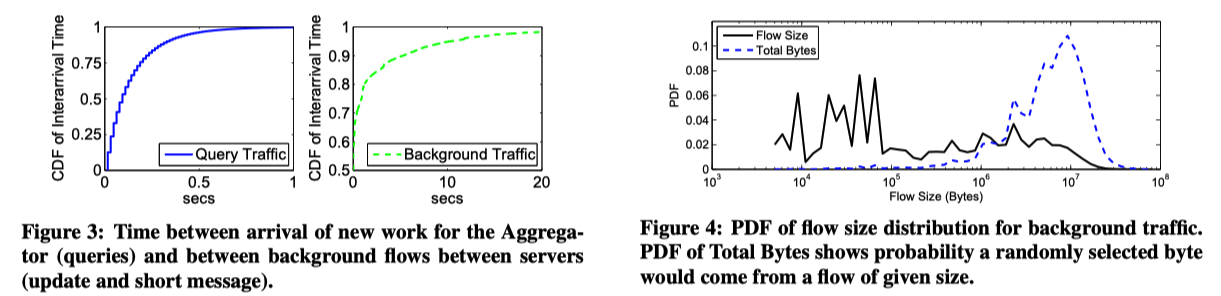

Background Traffic. Concurrent with the query traffic is a complex mix of background traffic, consisting of both large and small flows. Figure 4 presents the PDF of background flow size, illustrating how most background flows are small, but most of the bytes in background traffic are part of large flows. Key among background flows are large, 1MB to 50MB, update flows that copy fresh data to the workers and time-sensitive short message flows, 50KB to 1MB in size, that update control state on the workers. Figure 3(b) shows the time between arrival of new background flows. The inter-arrival time between background flows reflects the superposition and diversity of the many different services supporting the application:
(1) the variance in interarrival time is very high, with a very heavy tail;
(2) embedded spikes occur, for example the 0ms inter-arrivals that explain the CDF hugging the y-axis up to the 50 th percentile;
and (3) relatively large numbers of outgoing flows occur periodically, resulting from workers periodically polling a number of peers looking for updated files.
Flow Concurrency and Size. Figure 5 presents the CDF of the number of flows a MLA or worker node participates in concurrently (defined as the number of flows active during a 50ms window). When all flows are considered, the median number of concurrent flows is 36, which results from the breadth of the Partition/Aggregate traffic pattern in which each server talks to 43 other servers. The 99.99th percentile is over 1,600, and there is one server with a median of 1,200 connections.
When only large flows (> 1MB) are considered, the degree of statistical multiplexing is very low — the median number of concurrent large flows is 1, and the 75th percentile is 2. Yet, these flows are large enough that they last several RTTs, and can consume significant buffer space by causing queue buildup.
In summary, throughput-sensitive large flows, delay sensitive short flows and bursty query traffic, co-exist in a data center network. In the next section, we will see how TCP fails to satisfy the performance requirements of these flows.
Understanding Performance Impairments¶
We found that to explain the performance issues seen in the production cluster, we needed to study the interaction between the long and short flows in the cluster and the ways flows interact with the switches that carried the traffic.
Switches¶
Like most commodity switches, the switches in these clusters are shared memory switches that aim to exploit statistical multiplexing gain through use of logically common packet buffers available to all switch ports. Packets arriving on an interface are stored into a high speed multi-ported memory shared by all the interfaces. Memory from the shared pool is dynamically allocated to a packet by a MMU. The MMU attempts to give each interface as much memory as it needs while preventing unfairness [1] by dynamically adjusting the maximum amount of memory any one interface can take. If a packet must be queued for an outgoing interface, but the interface has hit its maximum memory allocation or the shared pool itself is depleted, then the packet is dropped. Building large multi-ported memories is very expensive, so most cheap switches are shallow buffered, with packet buffer being the scarcest resource. The shallow packet buffers cause three specific performance impairments, which we discuss next.
Incast¶

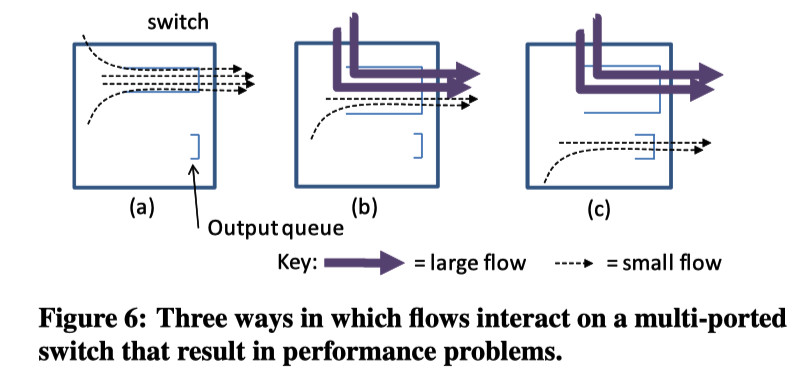

As illustrated in Figure 6(a), if many flows converge on the same interface of a switch over a short period of time, the packets may exhaust either the switch memory or the maximum permitted buffer for that interface, resulting in packet losses. This can occur even if the flow sizes are small. This traffic pattern arises naturally from use of the Partition/Aggregate design pattern, as the request for data synchronizes the workers’ responses and creates incast [32] at the queue of the switch port connected to the aggregator.
The incast research published to date [32, 13] involves carefully constructed test lab scenarios. We find that incast-like problems do happen in production environments and they matter — degrading both performance and, more importantly, user experience. The problem is that a response that incurs incast will almost certainly miss the aggregator deadline and be left out of the final results.
We capture incast instances via packet-level monitoring. Figure 7 shows timeline of an observed instance. Since the size of each individual response in this application is only 2KB (2 packets) 1 , loss of a packet almost invariably results in a TCP time out. In our network stack, the RTO min is set to 300ms. Thus, whenever a timeout occurs, that response almost always misses the aggregator’s deadline.
Developers have made two major changes to the application code to avoid timeouts on worker responses. First, they deliberately limited the size of the response to 2KB to improve the odds that all the responses will fit in the memory of the switch. Second, the developers added application-level jittering [11] to desynchronize the responses by deliberating delaying them by a random amount of time (typically a mean value of 10ms). The problem with jittering is that it reduces the response time at higher percentiles (by avoiding timeouts) at the cost of increasing the median response time (due to added delay). This is vividly illustrated in Figure 8.
Proposals to decrease RTO min reduce the impact of timeouts [32], but, as we show next, these proposals do not address other important sources of latency.
Queue buildup¶
Long-lived, greedy TCP flows will cause the length of the bottleneck queue to grow until packets are dropped, resulting in the familiar sawtooth pattern (Figure 1). When long and short flows traverse the same queue, as shown in Figure 6(b), two impairments occur. First, packet loss on the short flows can cause incast problems as described above. Second, there is a queue buildup impairment: even when no packets are lost, the short flows experience increased latency as they are in queue behind packets from the large flows. Since every worker in the cluster handles both query traffic and background traffic (large flows needed to update the data structures on the workers), this traffic pattern occurs very frequently.
A closer look at Figure 7 shows that arrivals of the responses are distributed over ∼12ms. Since the total size of all responses is only 43 × 2KB = 86KB — roughly 1ms of transfer time at 1Gbps — it is surprising that there would be any incast losses in such transfers. However, the key issue is the occupancy of the queue caused by other flows - the background traffic - with losses occurring when the long flows and short flows coincide.
To establish that long flows impact the latency of query responses, we measured the RTT between the worker and the aggregator: this is the time between the worker sending its response and receiving a TCP ACK from the aggregator labeled as “RTT+Queue” in Figure 7. We measured the intra-rack RTT to approximately 100 µ s in absence of queuing, while inter-rack RTTs are under 250 µ s. This means “RTT+queue” is a good measure of the the length of the packet queue headed to the aggregator during the times at which the aggregator is collecting responses. The CDF in Figure 9 is the distribution of queue length for 19K measurements. It shows that 90% of the time a response packet sees < 1ms of queueing, and 10% of the time it sees between 1 and 14ms of queuing (14ms is the maximum amount of dynamic buffer). This indicates that query flows are indeed experiencing queuing delays. Further, note that answering a request can require multiple iterations, which magnifies the impact of this delay.
Note that this delay is unrelated to incast. No packets are being lost, so reducing RTO min will not help. Further, there need not even be many synchronized short flows. Since the latency is caused by queueing, the only solution is to reduce the size of the queues.
Buffer pressure¶
Given the mix of long and short flows in our data center, it is very common for short flows on one port to be impacted by activity on any of the many other ports, as depicted in Figure 6(c). Indeed, the loss rate of short flows in this traffic pattern depends on the number of long flows traversing other ports. The explanation is that activity on the different ports is coupled by the shared memory pool.
The long, greedy TCP flows build up queues on their interfaces. Since buffer space is a shared resource, the queue build up reduces the amount of buffer space available to absorb bursts of traffic from Partition/Aggregate traffic. We term this impairment buffer pressure. The result is packet loss and timeouts, as in incast, but without requiring synchronized flows.
