Parsimon: Scalable Tail Latency Estimation for Data Center Networks

又是奇怪的给ns-3 simu加速的工作, 这次不是ML, 而是基于排队论的分解思想. 看起来很玄乎, 太数学了, 懒得看

(1) 核心问题与背景

• 挑战: 随着数据中心网络(DCN)在带宽和规模上的扩展, 使用传统的数据包级网络模拟器(如 ns-3)来回答"如果......会怎样"(what-if)的问题变得非常缓慢, 往往需要数小时甚至数天
• 现有方案局限: 现有的加速方案(如 MimicNet)虽然使用了机器学习, 但需要漫长的训练步骤, 且对拓扑和负载的一致性有较强假设, 不一定适用于实际生产环境
• 目标: 开发一种无需训练步骤, 能处理通用流量矩阵和拓扑, 且能快速提供尾部延迟(tail latency)估算的方法

(2) 解决方案: Parsimon

Parsimon 是一个旨在快速估算大规模网络中 flow-level 性能分布的系统

• 核心思想:
  • 将复杂的全网模拟分解为许多独立的, 并行的单链路模拟(single-link simulations)
  • 然后通过统计方法将结果聚合
• 理论基础:
  • 类似于排队论中的积形式解(product-form solutions), 假设各个队列(链路)的状态在一定程度上是独立的

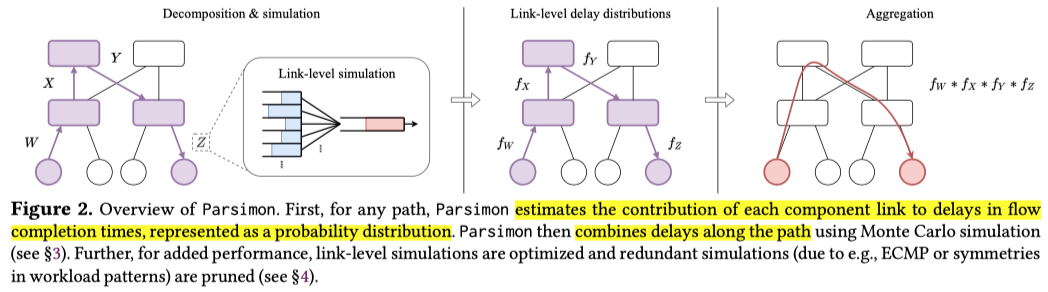

(3) Workflow

1. 分解 (Decomposition):
   1. 将全网流量分配到各个链路上
   2. Parsimon 为每个链路生成一个简化的拓扑, 独立模拟该链路的排队和拥塞行为
2. 聚类 (Clustering):
   1. 利用数据中心拓扑和负载的对称性, 将具有相似流量特征的链路聚类
   2. 只需模拟每个聚类中的一个代表性链路, 从而大幅减少计算量
3. 模拟 (Simulation):
   1. 并行运行链路级模拟
   2. 生成的不是具体的流完成时间, 而是该链路对流造成的 delay distributions
4. 聚合 (Aggregation):
   • 通过蒙特卡洛采样, 将路径上各跳链路的延迟分布进行卷积(convolution), 从而估算出端到端的流完成时间(FCT)

(4) 性能与准确性

• 速度: 相比 ns-3, Parsimon 能实现 2 到 3 个数量级 的加速(例如从 11 小时缩短到 1-2 分钟)
• 准确性: 在大多数测试配置中, 相对于 ns-3 的误差在 10% 以内, 尤其是在估算 99 分位数的尾部延迟时表现良好
• 误差来源: Parsimon 倾向于略微高估延迟(保守估计). 主要的误差来源包括忽略了上游流量整流(smoothing)效应以及链路间拥塞的强相关性

适用场景

• 适用于大规模数据中心网络的尾部延迟估算
• 主要针对 DCTCP 等现代传输协议, 假设网络丢包率极低
• 不适用于: 需要研究短期瞬态行为或存在严重且持久的拥塞导致链路间强相关性的场景

Introduction

Counterfactual simulation—to answer "what if" questions about the interaction of network protocols, workloads, topology, and switch behavior—has long been used by both researchers and practitioners as a way of quantifying the effect of design options and operational parameters [2, 16, 21, 2326, 36]. As production data center networks have scaled up in bandwidth and scaled-out in size [4,29],however,network simulation has failed to keep pace. Although there is ample parallelism at a physical level in large scale data center networks, it has been difficult to realize significant speedup with packet-level network simulation[22,30]. As packets flow through the network, the scheduling decisions at each switch affect the behavior of every flow traversing that switch, and therefore the scheduling decisions at every downstream switch, and with congestion control—future flow behavior, in a cascading web of very fine-grained interaction. In our own experiments using ns-3 [23], for example, simulating a 384-rack, 6,144-host network on a single thread of a modern desktop CPU took 11 to 27 hours of wall-clock time to advance five seconds of simulated time. While parallel techniques for discrete event simulation exist [10], recent work has demonstrated their limited efficacy for speeding up simulations of highly interconnected data center networks [34]. As a result, packet-level network simulation today is mostly used for small scale studies.

The need for faster network simulation has spawned recent efforts to use machine learning to model how different parts of the network affect each other [32, 34]. While promising, these approaches have several limitations. MimicNet requires hours-long retraining for new workloads and network configurations, and it only accelerates simulations of uniform fat trees with uniform traffic among equally-sized clusters of machines [34]. DeepQueueNet relaxes some of MimicNet's restrictions but does not model congestion control, which can be a first-order determiner of performance [32].

This paper aims to address this gap, to develop techniques for fast approximate simulation of large scale networks with arbitrary workloads and topologies. Our work involves no training step, aiming to produce near-real time results even at scale. In addition to reducing the cost of evaluating new protocols, another goal is to provide real-time decision support for network operators, such as warnings of SLO violations if links fail[17,20], advice on task placement of communication-intensive jobs [7], and predicting the performance impact of planned partial network outages and upgrades [8, 35].

A key observation is that we could achieve high degrees of parallelism if we could somehow disentangle the interactions between switch queues, allowing us to study the behavior of the traffic on each link in isolation. Of course, switch queues are not in reality completely disentangled. The packets for any particular flow experience a very specific set of conditions at each switch, and those conditions are affected by the presence of upstream bottlenecks which can smooth packet arrivals for competing flows at downstream switches. The congestion response for a flow depends on the combination of conditions at every switch along the path.

However, large scale data center networks are typically managed with the goal of delivering consistent high performancetoapplications.Whilecongestioneventsdooccur,they are often chaotic rather than persistent, popping up and then disappearing in different spots due to the inherent burstiness and flow size distribution of applications, rather than due to some long-term mismatch between demand and capacity in some portion of the network [33]. Further, we are often interested in aggregate behavior, such as the frequency of poor flowperformance,ratherthan thebehaviorofeachindividual packet or flow.

Tomodelaggregatebehavior, ourhypothesisisthatwecan approximate the distribution of end-to-end flow performance for a particular workload running on a large scale network by modeling the frequency and magnitude of local congestion events at each link along individual paths. A long flow will of course experience multiple congestion events during its lifetime, but most of these will occur at different points along thepathatdifferenttimes.Modelingtheeffectofsimultaneous congestion events, and the response of the congestion algorithm to multiple simultaneous bottlenecks, is second order.

Our hypothesis is related to the concept of product-form solutions in queuing theory. For certain classes of queueing networks(e.g.,Jackson[12]andBCMPnetworks[6]),theequilibriumdistributionofqueuelengthscanbewritteninproduct form, i.e., the state of an individual queue is only dependent on the traffic it receives and not on the state of the rest of the network.Theseresultsgenerallyrequirespecificassumptions about job arrival processes (e.g., Poisson), service-time distributions (e.g., Exponential), and queueing/routing disciplines (e.g., FIFO or processor-sharing queues), and there has been much theoretical work on identifying classes of queueing networks that admit product-form solutions [13]. Although data center networks do not strictly conform to these conditions and the dynamics of each individual queue can be quite complex (e.g., due to congestion control), our hypothesis is that product-form solutions are approximately true in most realistic settings, and therefore we can analyze individual queues in isolation and combine the results to approximate end-to-end network behavior.

We built Parsimon to directly test this hypothesis. First, we deconstruct the network topology into a large number of simple and fast simulations where each can be run entirely in parallel by a single hyperthread. Each simulation aims to collect the distribution of delays that flows of a particular size would experience through a single link, assuming that the rest of the network is benign. We then combine these simulated delay distributions to produce predictions of the end-to-end delay distribution, again for flows of a given size. At each step, we make conservative assumptions for how delays should be computed and combined. In many settings, researchers and operators are interested in keeping tail behavior well-managed, making a conservative assumption more appropriatethananoptimisticone.Finally,Parsimonclusters links with common traffic characteristics, eliminating much of the overhead of simulating parallel links in the core of the network as well as edge links used by replicated or parallel applications, further improving simulation performance.

Because validation against detailed packet-level simulation at scale is so expensive, we focus our study on a single widely used transport protocol, DCTCP [2], with FIFO queues with ECN packet marking at each switch [27]. We also focus on queue dynamics rather than packet loss; most data center networks are provisioned and engineered for extremely low packet loss [28, 29]. We note that these assumptions are not fundamental to our approach. We show Parsimon generalizes to two other transport protocols, DCQCN [36] and the delay-based TIMELY [19]. Validation of other transport protocols [3, 14, 16, 21], switch queueing disciplines [1, 9, 11, 21], and packet loss remains future work. We note that modern data center transport layer protocols are adept at quickly adapting to the presence and absence of congestion, and so we caution our results may not extend to older transport protocols where convergence time is a large factor.

Parsimon speeds up simulations by reasoning about links independently, which enables massive parallelization, but at a cost in accuracy. As we will see in §3.6, anything that creates standing congestion both at the core and at the edge, or when cross traffic is correlated across multiple hops, will result in less accurate estimates. While our methods are designed to favor overestimating rather than underestimating tail latencies, this property is only evaluated experimentally (§5). In general there is no formal guarantee, since factors like congestion control can in theory behave in arbitrary ways that render less appropriate the approximation of considering links independently. We assume that we can simulate for long enough for the network to reach equilibrium; studies of short term transient behavior should not use our approach. We do not provide predictions at the level of an individual flow, but we are able to show that Parsimon is accurate for sub-classes of traffic for mixed workloads. We do not attempt to model end host scheduling delay of packet processing, even though that may have a large impact on network performance [14, 15]; we leave addressing that to future work.

To assess accuracy, we compare distributions of flow completion time (FCT) slowdown, defined as the observed FCT divided by the best achievable FCT on an unloaded network, and we say a flow is complete when all of its bytes have been delivered to its destination. Fig. 1 shows a sample of our results for the 6,144 host network mentioned above, running a published industry trafficmatrix[28] and flow size distribution[21],and with standard settings for burstiness and over-provisioning. We describe the details of this and other experiments later in the paper. Depicted are FCT slowdown distributions binned by flow size. While ns-3 took nearly 11 hours on this configuration, Parsimon was able to match flow-size specific performance of ns-3 in 79 seconds (a 492 times speedup) on a single 32-way multi-core server with an error of 9% at the 99th percentile. Given a small cluster of simulation servers, we estimate a completion time of 21 seconds using our approach.

In our evaluation, we scan the parameter space to identify circumstances where our approximations are less accurate. Link clustering improves performance but hurts accuracy somewhat; this tradeoff can be avoided by using more simulation cores. Without clustering, accuracy suffers when there is high utilization of links in the core (above 50%), there are high levels of oversubscription, and a large fraction of network traffic is due to flows that finish within a single round trip. Generally, a combination of factors is required for poor accuracy. In 85% of the configurations we test, the error relative to ns-3 is under 10%.

Parsimon source code and evaluation scripts are publicly available at https://github.com/netiken.

(1) 背景与核心痛点

• 模拟速度瓶颈:
  • "反事实模拟"(Counterfactual simulation, 即回答"如果......会怎样"的问题)对于评估网络设计至关重要
  • 但在大规模数据中心网络(DCN)中, 传统的数据包级模拟器(如 ns-3)由于需要处理交换机和流之间复杂的级联交互, 难以并行化, 速度极慢(例如: 模拟 5 秒钟的网络行为可能需要 11-27 小时)
• 现有加速方案的不足:
  • 基于机器学习的方法(如 MimicNet, DeepQueueNet)虽然有潜力, 但存在局限性, 如需要长时间的重新训练, 对拓扑结构有严格假设, 或忽略了拥塞控制等关键因素

(2) 核心目标

• 开发一种无需训练步骤, 能处理任意工作负载和拓扑的快速近似模拟技术
• 目标是提供近实时的结果, 支持网络运营商进行决策(如故障时的 SLO 预警, 任务放置建议等)

(3) 核心假设: 解耦与积形式解(Product-Form Solution)

• 观察: 大规模 DCN 通常以高性能为目标, 拥塞往往是由于流量突发性导致的"混沌"现象, 而非长期的供需不匹配
• 假设: 作者提出假设, 类似于排队论中的"积形式解", 网络中各个链路(队列)的行为可以被近似地视为相互独立
• 方法论: 不再模拟全网复杂的交互, 而是将每个链路隔离出来单独分析, 然后将结果聚合以估算端到端的性能

(4) Parsimon 系统方案

• 分解与并行: 将网络拓扑分解为大量简单的单链路模拟, 利用多核 CPU 进行大规模并行计算
• 分布估算: 模拟旨在获取特定大小的流在单个链路上的延迟分布, 而非具体的数据包行为
• 聚合与聚类: 结合各链路的延迟分布来预测端到端延迟; 利用链路聚类(Clustering)技术将具有相似流量特征的链路归类, 进一步减少计算量

(5) 适用范围与局限性

• 适用场景: 主要关注拥塞控制协议(特别是 DCTCP, 也适用于 DCQCN 和 TIMELY)和队列动态, 假设网络处于低丢包率环境
• 局限性:
  • 该方法是一种近似, 以准确性换取速度
  • 在存在持续拥塞(Standing congestion)或跨多跳的强相关流量时, 准确性会下降
  • 仅适用于稳态分析, 不适用于短期瞬态行为研究

(6) 性能与准确性验证

• 速度提升: 相比 ns-3, Parsimon 实现了数百倍的加速(例如从 11 小时缩短到 79 秒)
• 准确性:
  • 在 85% 的测试配置中, 相对于 ns-3 的误差在 10% 以内.
  • 该系统倾向于保守估计(高估)尾部延迟, 这对于网络运维来说是更安全的策略

剩余的懒得看了, 实在对笔者没什么吸引力...
